  Hi,

  As explained in README.md, we do not need to touch the raw git repository (https://codeberg.org/klayoutmatthias/xsection.git) if we simply use the package.


  Installation step







  ---

  Sample run

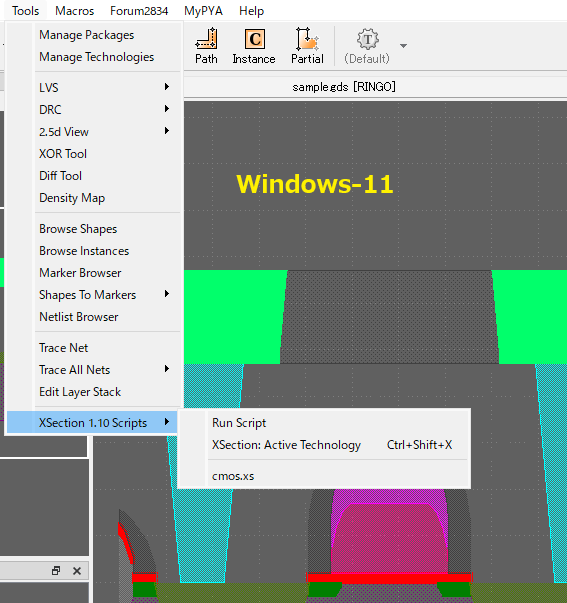

  When running a .xs script for the first time, select "Run Script" and choose the .xs file.
  The recent scripts are stored in $HOME/.klayout-xsection.

  sekigawa@ubuntu:~ cat $HOME/.klayout-xsection
  <xsection>
  <mru>/home/sekigawa/GitWork/ForumKLayout/Forum/Forum2890/cmos.xs</mru>
  </xsection>




  ---

  We need to clone the repository to run tests and generate HTML documents.

  Run tests

  MacMiniKS{sekigawa} xsection (1)% cd tests

  MacMiniKS{sekigawa} tests (2)% ./run_tests.sh
  /Applications/klayout-std.app/Contents/MacOS/klayout
  Using KLayout binary from: /Applications/klayout-std.app/Contents/MacOS/klayout
  ---------------------------------------------------
  Running testcase xs_bug11 ..
  Running XSection script xs_bug11.xs with -10,40 to 60,40 ..
  Writing run_dir/xs_bug11.gds ..
  No differences found on layer 1/0
  No differences found on layer 2/0
  No differences found on layer 3/1
  No differences found on layer 3/2
  No differences found on layer 3/3
  No differences found on layer 3/4
  No differences found on layer 4/0
  No differences found.
  :
  :
  :
  ---------------------------------------------------
  Running testcase xs_planarize3 ..
  Running XSection script xs_planarize3.xs with -1,0 to 1,0 ..
  Writing run_dir/xs_planarize3.gds ..
  No differences found on layer 100/0
  No differences found on layer 101/0
  No differences found on layer 102/0
  No differences found.
  ---------------------------------------------------
  All tests successful.


  ---

  Generate HTML documents

  MacMiniKS{sekigawa} xsection (1)% cd docs

  MacMiniKS{sekigawa} docs (2)% which pandoc
  /opt/local/bin/pandoc

  MacMiniKS{sekigawa} docs (3)% pandoc --version
  pandoc 3.10.1
  Features: +server +lua
  Scripting engine: Lua 5.4

  MacMiniKS{sekigawa} xsection (4)% ./builddoc.sh

  MacMiniKS{sekigawa} xsection (5)% cd ../doc-html

  MacMiniKS{sekigawa} doc-html (6)% ll *.html
  -rw-r--r-- 1 sekigawa staff 22716 Oct  1 22:44 DocEtch.html
  -rw-r--r-- 1 sekigawa staff 26050 Oct  1 22:44 DocGrow.html
  -rw-r--r-- 1 sekigawa staff 37623 Oct  1 22:44 DocIntro.html
  -rw-r--r-- 1 sekigawa staff 30734 Oct  1 22:44 DocReference.html
  -rw-r--r-- 1 sekigawa staff  4527 Oct  1 22:44 index.html <=== open this file with your browser



• mathine

  October 6

  I have followed your instruction previously and again after following your instructions.

  Seems quite simple but doesn't work. I have been using the cross-section tool for many years and have a number of Ruby process flows generated and don't want to lose that work.

  I have downloaded the www.klayout.org 1.0 - Ruby scripts with no problems using this approach.
• mathine

  October 15

  I was able to copy the salt directory from my old computer and place it in the KLayout folder on the new computer. I can now run xsection. At least the 1.4 version.
• sekigawa

  12:39AM

  OK, then try the following steps as a workaround.

  macOS / Linux terminal with git

  MacMiniKS{sekigawa} ~ (1)% mkdir -p ~/temp

  MacMiniKS{sekigawa} ~ (2)% cd temp

  MacMiniKS{sekigawa} temp (3)% git clone https://codeberg.org/klayoutmatthias/xsection.git
  Cloning into 'xsection'...
  remote: Enumerating objects: 883, done.
  remote: Counting objects: 100% (20/20), done.
  remote: Compressing objects: 100% (4/4), done.
  remote: Total 883 (delta 17), reused 16 (delta 16), pack-reused 863 (from 1)
  Receiving objects: 100% (883/883), 720.82 KiB | 835.00 KiB/s, done.
  Resolving deltas: 100% (395/395), done.

  MacMiniKS{sekigawa} temp (4)% cd xsection/src

  MacMiniKS{sekigawa} src (5)% ll
  total 8
  drwxr-xr-x  5 sekigawa staff  160 Oct 16 06:40 .
  drwxr-xr-x 13 sekigawa staff  416 Oct 16 06:40 ..
  -rw-r--r--  1 sekigawa staff 5512 Oct 16 06:40 grain.xml
  drwxr-xr-x  3 sekigawa staff   96 Oct 16 06:40 macros
  drwxr-xr-x  8 sekigawa staff  256 Oct 16 06:40 ruby

  MacMiniKS{sekigawa} src (6)% mkdir -p ~/.klayout/salt/xsection

  MacMiniKS{sekigawa} src (7)% cp -Rp * ~/.klayout/salt/xsection


  ---

  Windows-11 cmd.exe with git.exe

  c:\Users\sekigawa>mkdir "%USERPROFILE%\temp" --- (1)

  c:\Users\sekigawa>cd /d %USERPROFILE%\temp --- (2)

  C:\Users\sekigawa\temp>git clone https://codeberg.org/klayoutmatthias/xsection.git --- (3)
  Cloning into 'xsection'...
  remote: Enumerating objects: 883, done.
  remote: Counting objects: 100% (20/20), done.
  remote: Compressing objects: 100% (4/4), done.
  remote: Total 883 (delta 17), reused 16 (delta 16), pack-reused 863 (from 1)
  Receiving objects: 100% (883/883), 720.82 KiB | 862.00 KiB/s, done.
  Resolving deltas: 100% (395/395), done.
  Updating files: 100% (257/257), done.

  C:\Users\sekigawa\temp>cd xsection\src --- (4)

  C:\Users\sekigawa\temp\xsection\src>dir --- (5)
   Volume in drive C is Windows
   Volume Serial Number is C4EC-0AFC

   Directory of C:\Users\sekigawa\temp\xsection\src

  10/16/2026  08:55 AM    <DIR>          .
  10/16/2026  08:55 AM    <DIR>          ..
  10/16/2026  08:55 AM             5,527 grain.xml
  10/16/2026  08:55 AM    <DIR>          macros
  10/16/2026  08:55 AM    <DIR>          ruby
                 1 File(s)          5,527 bytes
                 4 Dir(s)  1,087,898,054,656 bytes free

  C:\Users\sekigawa\temp\xsection\src>mkdir "%USERPROFILE%\klayout\salt\xsection" --- (6)

  C:\Users\sekigawa\temp\xsection\src>xcopy * "%USERPROFILE%\klayout\salt\xsection\" /E /I /H /Y --- (7)
  C:grain.xml
  C:macros\xsection.lym
  C:ruby\layout_data.rb
  C:ruby\mask_data.rb
  C:ruby\material_data.rb
  C:ruby\xsection.rb
  C:ruby\xsection_generator.rb
  C:ruby\xsection_script.rb
  8 File(s) copied
